연구 장비
개요
R&D 연구소 내 설치된 각종 제어 설계 프로그램을 활용하여 제어 시스템을 다양한 분야에 적용 가능하도록 고객 맞춤화하고,
구조, 배관 해석 및 3D 엔지니어링 프로그램을 사용하여 정확한 설계에 신뢰성을 부여합니다.
보유 장비
NO | ITEM | SPECIFICATION |

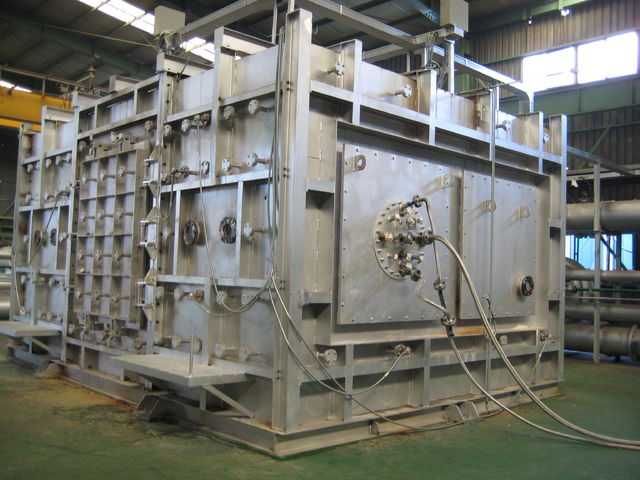

I. MAIN TEST FURNACE | ||
| A. | EFFECTIVE SIZE | W:6.0 X H:3.0 X L:5.0 m |
| B. | MAX.TEMPERATURE | 1,500°C |

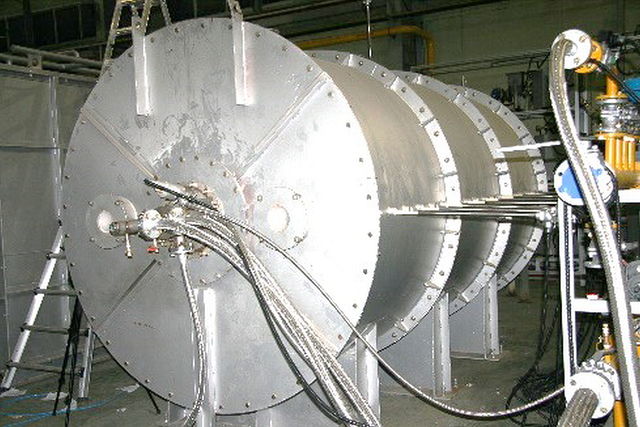

II. TEST CHAMBER for Oxygen Burner | ||
| A. | EFFECTIVE SIZE | D:2.0 X L:3.0 m |
| B. | MAX.TEMPERATURE | 1,500°C |

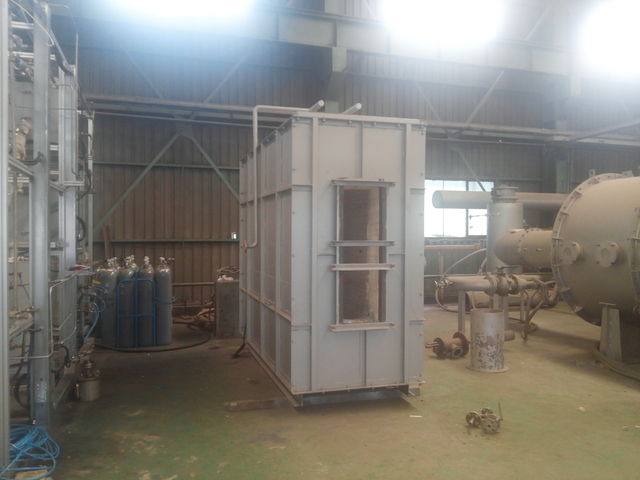

III. TEST CHAMBER for Radiant Tube Burner | ||
| A. | EFFECTIVE SIZE | W:0.8 X H:2.5 X L:4.0 m |
| B. | MAX.TEMPERATURE | 1,400°C |
NO | ITEM | SPECIFICATION |
| 1 | LNG | 500N㎥/hr |
| 2 | OXYGEN FLOW RATE | 500N㎥/hr |
| 3 | BLOWER AIR FLOW RATE | 5,500N㎥/hr |
| 4 | EXHAUST GAS FLOW RATE | 5,500N㎥/hr |

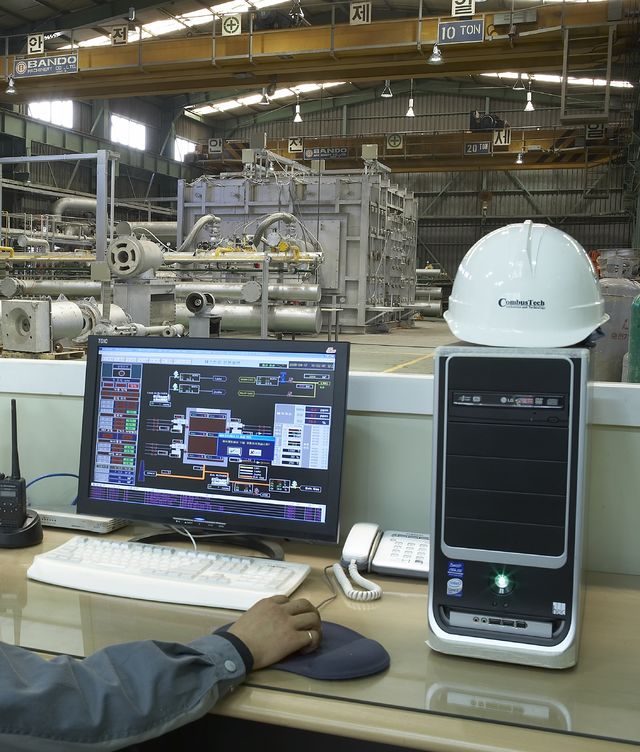

제어 시스템
| No.1 | ITEM | SPECIFICATION |
| A. | PLC SYSTEM | SIMENS S7-300 |
| B. | HMI SYSTEM | INTOUCH |
측정 장비
| No. | ITEM | SPECIFICATION | REMARK |
| A. | EXHAUST GAS DETECTOR | NOx, SOx, CO, O2 | TMS(Tele-Measuring System) |
| B. | TEMPERATURE | 74 POINT | R-TYPE 54POINT, B-TYPE 4POINT, K-TYPE 16POINT |
| C. | FLOW RATE MEASURING | LNG, AIR, OXY etc | FLOWTRANSMITER 10 sets installed |
| D. | PRESSURE MEASURING | LNG, AIR, OXY etc | P-TRANSMITER 12 sets installed |
소프트웨어
| No. | ITEM | SPECIFICATION | REMARK | |
| A. | 3D CAD | I-CAD | Mechanical 3D Design | |
| B. | SOLIDWORKS | Mechanical 3D Design | ||
| C. | PDS(PIPING DESIGN SYSTEM) | INTERGRAPH, Piping Design | ||
| D. | SMART PIPING DESIGN SYSTEM | INTERGRAPH, Piping Design | ||
| E. | CAD | MICRO STATION | AUTO DESK, Drawing | |
| F. | AUTO CAD | AUTO DESK, Drawing | ||
| G. | ANALYSIS | COSMO WORKS | Structural Analysis | |
| H. | ANSYS | Structural Analysis | ||
| I. | PHYSICA | MULTI-PHYSICS Analysis | ||
| J. | FLUENT | Fluid Analysis | ||
| K. | HEAT ANALYSIS CODE | Heat Analysis | ||
| L. | PIPING CALCULATION CODE | Pipe Size Calculation | ||
| M. | PLC SOFTWARE | PLC SOFTWARE | SIMENS,MELSEC,AB, PLC Programming | |
| N. | HMI SOFTWARE | INTOUCH,WINCC,CITEK, HMI Programming | ||
